700 Class

Pintle Chains

  • Overview
  • Material
  • Assembly
  • Interchangeability
  • Application
  • Operation
  • Specifications
prodImgPlchldr

700 class pintle chains are of one-piece cast offset link construction joined together by steel clipped head pins. The pins are securely locked against turning in the sidebars by generous head stops cast on the links. The head stops are positioned to provide maximum locking effect when the chain is under load. This confines the wear to the part of the pin inside the barrel of the link, where it is distributed over the maximum area. This insures the best durability of the chain.

Industries

Links are cast of high grade Duramal. Duramal is a heat treated copper bearing malleable iron having greater strength and superior resistance to wear, abrasion and corrosion. Pins are heat treated.

Cottered construction is furnished unless riveted construction is requested.

700 class pintle chains are interchangeable with other standard makes of corresponding sizes and numbers.

700 class pintle chains are extensively used in water and wastewater treatment installations. The pin joint construction permits operation in a moderately dusty or abrasive atmosphere.

700 class pintle chains are adapted to loads ranging from normal to heavy and for speeds up to 300 FPM. Maximum chain speed depends upon size of sprockets. For Conveyor Service see Table 2, Section A.

Product Information Icon

700 Class Pintle Chains Product Specifications

Find your Specific Chain!

Let us help you narrow down your search. Give us some of the details you need for your application and we will see what we can find!

or

Have a Unique Need?
We Can Help with That as Well!

Know your chain number?

Search





Product Information

Dimensions are in inches unless otherwise noted.

Dimensions:

Product Chart:

 Swipe to See More

Chain No.Average Pitch InchesApprox. Links in 10 feetAverage Weight Per Ft. Lbs.Dimensions in InchesAttachment Numbers
Average Ultimate Strength in Lbs.Rated Working Load in Lbs.Barrel LengthSidebar WidthMax. Spkt. WidthPin Dia.Barrel Dia.To Cotter EndTo Head or Rivet End
DuramalDuramalXFADHKJ
7206204.227,5003,8601 7/81 1/21 1/811/161 3/81 7/81 11/16A42, F2, F2MSPC, F3
720S6205.237,5004,2451 7/81 9/161 1/83/41 7/162 1/81 13/16A11, A12, A42, AD474, AM116, F2, F3, F22-6, F22-8, M1
720NCS6205.437,5004,2451 7/81 9/161 1/83/41 7/162 1/81 13/16F3, F22-6, F22-8, K2, M1
730620640,0004,50021 3/41 1/83/41 1/22 1/161 7/8A42, AD474, F2, F3, K2, M1
730S620640,0004,50021 3/41 1/43/41 1/22 1/161 13/16A42, A111, A112
730NCS620640,0004,50021 3/41 5/323/41 1/22 3/321 25/32F3, F22-7, F22-8

Dimensions are in inches unless otherwise noted.

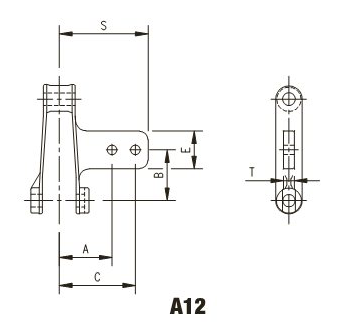

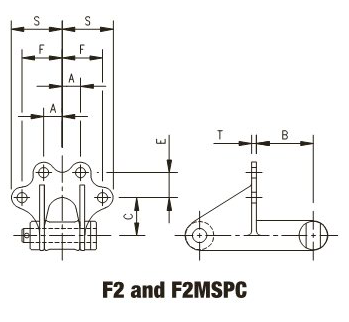

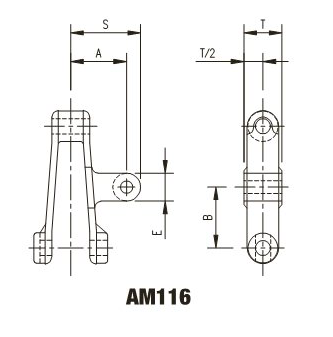

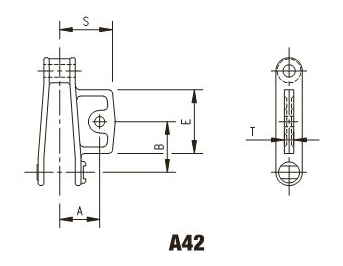

Select an attachment below:
