Hardened Steel

Bushed (HSB) Chains

  • Overview
  • Material
  • Assembly
  • Interchangeability
  • Application
  • Operation
  • Specifications

Hardened steel bushed (HSB) chains are designed as a substitute for combination chains where conditions require a heavier, more rugged chain.

Sidebars are medium carbon heat treated steel. Pins are alloy heat treated steel. Pins of 3⁄4″ diameter and larger are also induction hardened. Bushings are furnished in case hardened steel to provide maximum wear resistance and chain life.

Riveted construction is recommended for wood yards and sawmills. Cottered construction is recommended for elevators and conveyors. Chain pins will be alternating, except on HSB131 and HSB188.

HSB chains are interchangeable with other standard makes of corresponding sizes and numbers. They are also a direct upgrade to combination chains of the same number.

HSB chains are used for bucket elevators, wood yard conveyors and other types of conveyors and elevators operating under gritty and abrasive conditions. These chains have proven themselves in operation for long life and low maintenance.

Maximum chain speed depends upon size of sprockets. For Conveyor Service see Table 2, Section A.

Product Information Icon

Hardened Steel Bushed (HSB) Chains Product Specifications

Find your Specific Chain!

Let us help you narrow down your search. Give us some of the details you need for your application and we will see what we can find!


Have a Unique Need?
We Can Help with That as Well!

Know your chain number?


Product Information

Dimensions are in inches unless otherwise noted.


Product Chart:

 Swipe to See More

Chain No.StyleAverage Pitch InchesApprox. Links in 10 FeetAverage Weight Per Ft. Lbs.Average Ultimate Strength in Lbs.Rated Working Load in LbsSidebarsInside SidebarsOverall WidthPinsBushingsCommon Attachment Numbers
Thk.HeightMaterialTo Cotter EndTo Head or Rivet EndDia.StyleMaterialOutside Dia.StyleMaterial
HSB188S2.609463.825,0002,7301/41 1/8M.C.H.T.1 1/161 11/321 7/321/2AALY.H.T.7/82L.C.C.H.A1, A2, A22, K1, K2
HSB1663S2.609467.438,0003,2003/81 1/2M.C.H.T.1 1/161 19/321 15/321/2FALY.H.T.7/85L.C.C.H.
HSB131S3.075397.440,0004,3803/81 1/2M.C.H.T.1 1/41 13/161 5/85/8AALY.H.T.1 1/44L.C.C.H.A1, A2, A42, K1, K2
HSB102BS4.000306.940,0006,2903/81 1/2M.C.H.T.2 1/82 3/162 1/165/8AALY.H.T.12L.C.C.H.A1, A2, A2M, A22, K1, K2, K2M
HSB825O4.000308.760,0005,9003/82M.C.H.T.1 1/22 1/321 25/323/4AALY.I.H.1 1/82ALY.C.H.A2, A42, K2
HSB102½S4.040309.450,0007,7003/81 3/4M.C.H.T.2 3/162 3/82 1/83/4AALY.I.H.1 3/82ALY.C.H.A2, A2M, K2, K2M
HSB6472S4.040309.872,0006,1253/82M.C.H.T.1 1/41 25/321 21/327/8AALY.I.H.1 3/82ALY.C.H.
HSB4933S4.0403011.072,0009,2003/82M.C.H.T.2 1/42 15/322 5/327/8AALY.I.H.1 3/82ALY.C.H.
HSB111S4.7602510.250,0008,8503/82M.C.H.T.2 5/82 19/322 11/323/4AALY.I.H.1 7/166L.C.C.H.A1, A2M, K1, K2M
HSB111SPCS4.760 7.240208.850,0008,8503/82M.C.H.T.2 5/82 19/322 11/323/4AALY.I.H.1 7/166L.C.C.H.K2
HSB5131S5.000246.240,0004,3803/81 1/2M.C.H.T.1 1/41 13/161 5/85/8AALY.H.T1 1/44L.C.C.H.
HSB1316S6.000205.940,0004,6503/81 1/2M.C.H.T.1 3/81 25/321 19/325/8AALY.H.T.1 1/44L.C.C.H.A53
HSB2730S6.000207.750,0005,5753/81 3/4M.C.H.T.1 3/81 31/321 23/323/4AALY.H.T.1 3/84L.C.C.H.
HSB835S6.000208.160,0005,9003/82M.C.H.T.1 1/22 1/321 25/323/4AALY.I.H.1 1/82L.C.C.H.
HSB110S6.000206.340,0006,2903/81 1/2M.C.H.T.2 1/82 3/162 1/165/8AALY.H.T.1 1/44L.C.C.H.A2, A2M, A22, A42, K2, K2M, K22
HSB830O6.000207.560,0005,9003/82M.C.H.T.1 1/22 1/321 25/323/4AALY.I.H.1 1/82L.C.C.H.A2, A42, K2
HSB833S6.000209.050,0008,8503/82M.C.H.T.2 5/82 19/322 11/323/4AALY.I.H.1 7/166L.C.C.H.K2M
HSB844S or O6.0002010.465,0009,2001/22M.C.H.T.2 1/22 23/322 17/323/4AALY.I.H.1 1/82L.C.C.H.A2, K2
HSB826O6.0002014.095,0009,5703/82 1/2M.C.H.T.2 3/82 19/322 7/327/8BALY.I.H.1 1/22L.C.C.H.K2/K3
HSB860BS6.0002015.0100,00010,5001/22 1/2M.C.H.T.22 17/322 11/321FALY.I.H.1 3/46ALY.C.H.
HSB856BS6.0002016.2100,00014,0001/22 1/2M.C.H.T.332 27/321FALY.I.H.1 3/46ALY.C.HA2M, K2M, K3M, K24M, K35M
HSB956S6.0002017.3100,00014,0001/23M.C.H.T.332 27/321FALY.I.H.1 3/45ALY.C.H.A2M, K2M, K3M, K24M, K35M
HSB857AS6.0002021.0130,00014,0001/23 1/4M.C.H.T.33 5/322 27/321FALY.I.H.1 3/45ALY.C.H.K2M, K44
HSB2858AS6.0002024.1150,00015,3001/23 1/2M.C.H.T.2 1/22 29/322 19/321 1/4FALY.I.H.2 3/86ALY.C.H.K4M
HSB850S or O6.0002023.5200,00016,0005/83M.C.H.T.2 1/432 23/321 5/16AALY.I.H.26ALY.C.H.
HSB859BS6.0002034.0200,00021,8755/84M.C.H.T.3 3/43 25/323 15/321 1/4FALY.I.H.2 3/86ALY.C.H.K44
HSB1654O6.0002032.0230,00018,3755/84M.C.H.T.2 1/43 1/322 25/321 1/2BALY.I.H.2 1/26ALY.C.H.
HSB851S or O6.0002030.0200,00024,5005/83 1/2M.C.H.T.2 3/43 11/322 31/321 3/4BALY.I.H.2 3/86ALY.C.H.
HSB150+S6.0502016.6100,00015,1001/22 1/2M.C.H.T.3 3/83 7/323 1/321AALY.I.H.1 3/46ALY.C.H.A2M, K2M, K3M
HSB864BS7.0001732.0200,00021,8755/84M.C.H.T.3 3/43 25/323 15/321 1/4FALY.I.H.2 3/86ALY.C.H.K443
HSB984S7.0001731.0200,00024,0005/84M.C.H.T.3 3/43 25/323 15/321 3/8FALY.I.H.2 1/26ALY.C.H.K443
HSB2866S7.0001735.4200,00027,3705/84M.C.H.T.4 1/24 5/323 17/321.36FALY.I.H.2 3/86ALY.C.H.K3
HSB886O7.0001742.0350,00024,2003/44M.C.H.T.2 3/43 23/323 7/321 5/8FALY.I.H.2 5/86ALY.C.H.
HSB187S8.000152.525,0002,7301/41 1/8M.C.H.T.1 1/161 11/321 7/321/2AALY.H.T.7/82L.C.C.H.
HSB1856S8.0001513.9100,00014,0001/22 1/2M.C.H.T.332 27/321FALY.I.H.1 3/46ALY.C.H.
HSB1219S9.00013 1/38.050,0008,8503/82M.C.H.T.2 5/82 19/322 11/323/4AALY.I.H.1 7/166L.C.C.H.K21
HSB9124S9.00013 1/312.8100,00010,5001/22 1/2M.C.H.T.22 19/322 11/321FALY.I.H.1 3/46ALY.C.H.G6
HSB1956S9.00013 1/313.1100,00014,0001/22 1/2M.C.H.T.332 27/321FALY.I.H.1 3/46ALY.C.H.K21
HSB9150S9.00013 1/314.1100,00015,1001/22 1/2M.C.H.T.3 3/83 7/323 1/321FALY.I.H.1 3/46ALY.C.H.G6
HSB1903S9.00013 1/316.7110,00015,1001/23M.C.H.T.3 3/83 7/323 1/321FALY.I.H.1 3/45ALY.C.H.K21
HSB959S9.00013 1/328.2200,00021,8755/83 1/2M.C.H.T.3 3/43 25/323 15/321 1/4FALY.I.H.2 3/86ALY.C.H.G6
HSB964S9.00013 1/326.9200,00021,8755/84M.C.H.T.3 3/43 25/323 15/321 1/4FALY.I.H.2 3/86ALY.C.H.K44
HSB6322O12.000107.150,0007,2003/82M.C.H.T.22 9/322 1/323/4AALY.I.H.1 1/24L.C.C.H.G16A
HSB61021/2O12.000107.050,0007,7003/82M.C.H.T.2 3/162 3/82 1/83/4AALY.I.H.1 3/82ALY.C.H.G16A
HSB6124O12.0001011.7100,00010,5001/22 1/2M.C.H.T.2 1/22 9/162 11/321FALY.I.H.1 3/46ALY.C.H.G16A
HSB852O12.0001012.6100,00015,1001/22 1/2M.C.H.T.3 3/83 7/323 1/321FALY.I.H.1 3/46ALY.C.H.
HSB1259O12.0001025.2200,00021,8755/83 1/2M.C.H.T.3 3/43 25/323 15/321 1/4FALY.I.H.2 3/86ALY.C.H.

Dimensions are in inches unless otherwise noted.

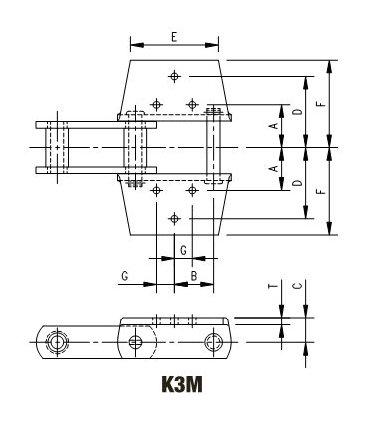

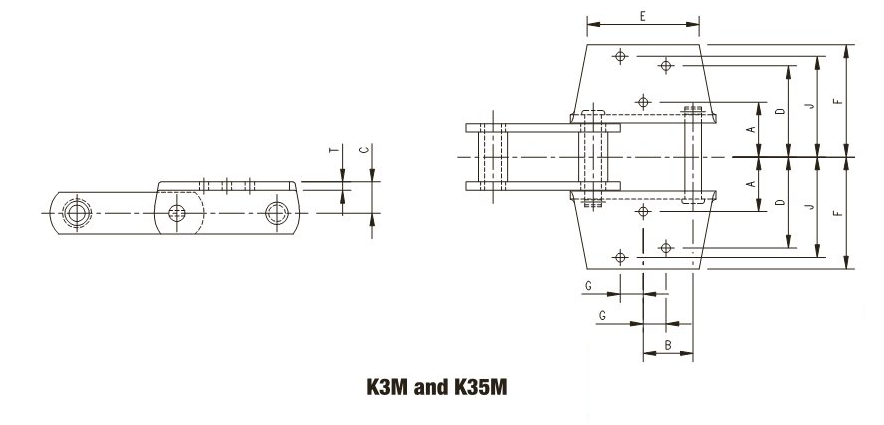

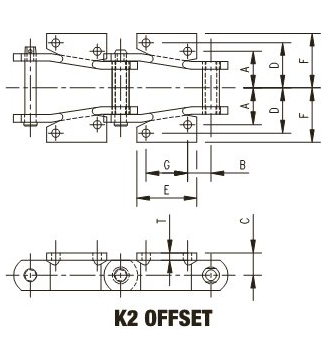

Select an attachment below:

Click to view 3D

Chain No.ABEFTWeight Per Foot-Lbs.Bolt Size3D3D share
HSB1881 25/321 5/161 1/82 13/323/84.83/8SHabee1QT1a327cf2b7ad3077bba5485af5c
HSB102B2 7/1621 1/43 1/161/27.55/8SHabee1QT1a327cf2b7ae075ffba91f1e93a
HSB110331 1/23 27/323/86.75/8SHabee1QT1a327cf2b7a9a224d4c2e55dfe0
