Outboard Roller

Combination Chains

  • Overview
  • Material
  • Assembly
  • Application
  • Operation
  • Specifications
prodImgPlchldr

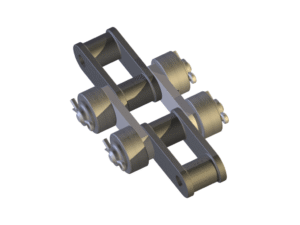

Outboard roller combination chains are an adaptation of the standard combination chain. The pins are extended to receive steel rollers. This eliminates sliding friction and helps reduce chain pull. Some standard combination chain attachments can be included in this chain.

Industries

The cast links are high grade copper bearing Duramal. Sidebars are medium carbon steel. Pins are heat treated medium carbon alloy steel. Electroplated chain pins are recommended to retard corrosion and will be furnished on request.

Cottered construction is furnished unless riveted construction is requested.

Outboard roller combination chains are used for light single strand car hauls, truck pushers and assembly line conveyors in the automotive industry.

Maximum chain speed depends upon size of sprockets. For Conveyor Service see Table 2, Section A.

Product Information Icon

Outboard Roller Combination Chains Product Specifications

Find your Specific Chain!

Let us help you narrow down your search. Give us some of the details you need for your application and we will see what we can find!

or

Have a Unique Need?
We Can Help with That as Well!

Know your chain number?

Search





Product Information

Dimensions are in inches unless otherwise noted.

Dimensions:

Product Chart:

 Swipe to See More

Chain No.Average Pitch InchesApprox. Links in 10 feetAverage Ultimate Strength in Lbs.Rated Working Load in Lbs.Dimensions in Inches
Barrel LengthSidebar WidthMax. Spkt. WidthPin Dia.Nominal Barrel Dia.Roller Dia.Overall Cotter WidthTo RollersRoller Face WidthSidebar Thk.
DuramalDuramalXFADHEWRST
CRN1106.0002030,0004,8002 7/81 1/21 15/165/81 1/426 5/84 11/167/83/8
CRN1114.7602545,0007,5003 3/81 3/42 3/83/41 7/162 1/47 3/85 1/415/163/8
CRN1313.0753930,0003,75021 1/21 1/85/81 1/425 3/43 13/167/83/8
CRN1326.0502062,50010,4004 3/823 1/811 3/4396 5/81 1/81/2
CR1882.6094617,5002,3401 9/161 1/815/161/27/81 1/24 3/82 13/165/81/4
