Steel bushed roller (SBR) chains are manufactured with heat treated rollers, hardened bushings and pins, and steel sidebars. The roller type construction provides a lower operating friction which helps increase chain life and reduces conveyor design requirements. They are available in a variety of sizes, configurations and designs and can be used in tough industrial applications. SBR chains come with a variety of standard attachments for immediate delivery.
Sidebars are medium carbon steel. Pins are alloy steel and are thru hardened for maximum chain life. Pins can be induction hardened for even more wear resistance. Sidebars and pins can be furnished with additional heat treatment on request. Bushings are case hardened steel to provide maximum wear resistance and chain life. Rollers are available in various designs and materials for different application requirements.
Riveted construction is recommended for wood yards and sawmills. Cottered construction is recommended for elevators and conveyors. Riveted or cottered construction must be specified.
SBR chains are interchangeable with other standard makes of corresponding sizes and numbers.
SBR chains are used in bucket elevators, flight conveyors, scraper conveyors and other conveying applications where difficult operating conditions prevail. The roller provides a lower operating friction which helps increase chain life and reduces conveyor design requirements.
Best suited for slow or moderate speed applications. Maximum chain speed depends upon size of sprockets. For Maximum Recommended Conveyor Speeds see Page 14, Section A, Table 2 in Webster’s Master Catalog.
Steel Bushed Roller (SBR) Chains Product Specifications
Product Information
Dimensions are in inches unless otherwise noted.

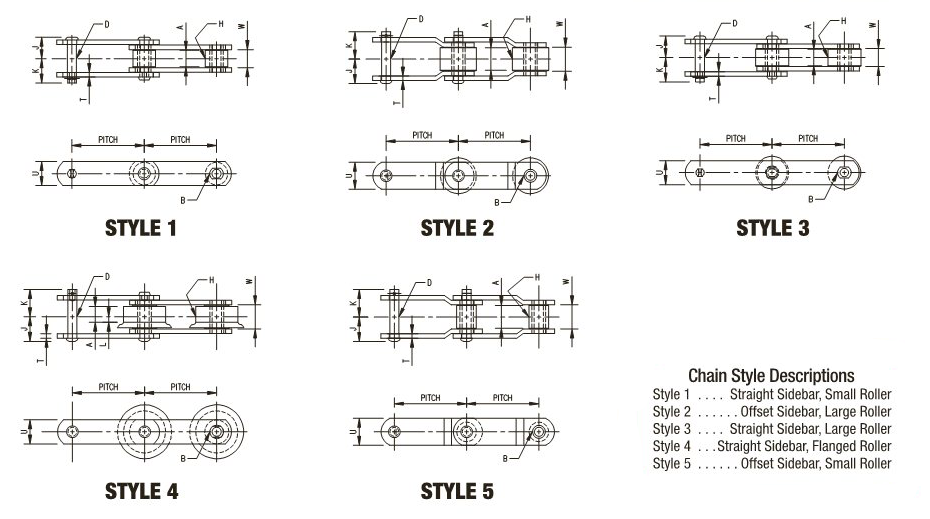

Dimensions:
Product Chart:
Swipe to See More
Chain No. | Chain Style | Average Pitch Inches | Approx. Links in 10 Feet | Average Weight Per Ft. Lbs. | Average Ultimate Strength in Lbs. | Rated Working Load in Lbs | General Dimensions | Pins | Sidebars | Bushings | Rollers | Common Attachment Numbers | ||||||||||||
Inside Sidebars | To Cotter End | To Head or Rivet End | Dia. | Style | Material | Thk. | Height | Material | Outside Dia. | Style | Material | Tread Dia. | Tread Width | Chain to Wheel Ga. | Style | Material | ||||||||
W | K | J | D | T | U | B | H | A | L | |||||||||||||||
S1500 | 1 | 1.500 | 80 | 3.7 | 12,000 | 2,000 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 13/16 | 1 1/32 | — | A | L.C.C.H. | A42 |
S1578 | 5 | 2.609 | 46 | 2.8 | 12,000 | 2,000 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 | M.C. | 5/8 | 3 | L.C.C.H. | 7/8 | 1 1/32 | — | A | L.C.C.H. | |
SS881 | 1 | 2.609 | 46 | 3.0 | 14,000 | 2,300 | 1 1/8 | 1 9/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 7/8 | 1 1/32 | — | A | L.C.C.H. | A1, A2, K1, K2 |
SS881+ | 1 | 2.609 | 46 | 3.8 | 27,890 | 2,490 | 1 1/8 | 1 9/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C.H.T. | 5/8 | 3 | L.C.C.H. | 7/8 | 1 1/32 | — | A | L.C.C.H. | A1, A2, K1, K2 |
S588+ | 5 | 2.609 | 46 | 3.8 | 27,890 | 2,490 | 1 1/8 | 1 9/32 | 1 1/4 | 7/16 | B | ALY.H.T. | 1/4 | 1 1/8 | M.C.H.T. | 5/8 | 3 | L.C.C.H. | 7/8 | 1 1/32 | — | A | L.C.C.H. | |
S788+ | 1 | 2.609 | 46 | 3.8 | 27,890 | 2,490 | 1 1/8 | 1 9/32 | 1 1/4 | 7/16 | B | ALY.H.T. | 1/4 | 1 1/8 | M.C.H.T. | 5/8 | 3 | L.C.C.H. | 7/8 | 1 1/32 | — | A | L.C.C.H. | A1, K1 |
81X | 1 | 2.609 | 46 | 2.5 | 24,000 | 2,500 | 1 1/16 | 1 5/32 | 1 | 7/16 | F | ALY.C.H. | 5/32 | 1 1/8 | M.C.H.T | 19/32 | 3 | L.C.C.H. | 29/32 | 31/32 | — | A | L.C.C.H. | |
81XH | 1 | 2.609 | 46 | 3.8 | 33,000 | 2,750 | 1 1/16 | 1 3/8 | 1 3/16 | 7/16 | F | ALY.C.H. | 5/16 | 1 1/4 | M.C.H.T | 19/32 | 3 | L.C.C.H. | 29/32 | 31/32 | — | A | L.C.C.H. | |
81XHH | 1 | 2.609 | 46 | 4.5 | 42,000 | 3,100 | 1 1/16 | 1 15/32 | 1 9/32 | 7/16 | F | ALY.C.H. | 5/16 | 1 1/4 | M.C.H.T | 19/32 | 3 | L.C.C.H. | 29/32 | 31/32 | — | A | L.C.C.H. | |
S1183 | 3 | 3.000 | 40 | 4.0 | 14,000 | 2,100 | 1 | 1 7/32 | 1 1/16 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 1/2 | 7/8 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2, M3 |
S1184 | 3 | 3.000 | 40 | 4.0 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 1/2 | 1 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2, M3 |
S4001 | 3 | 3.000 | 40 | 4.9 | 19,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/4 | M.C. | 3/4 | 3 | L.C.C.H. | 1 1/2 | 15/16 | — | A | L.C.C.H. | |
S1800+ | 5 | 3.075 | 39 | 6.2 | 30,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/4 | M.C.H.T. | 3/4 | 3 | L.C.C.H. | 1 1/8 | 15/16 | — | A | L.C.C.H. | |
S554 | 5 | 3.075 | 39 | 7.0 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | |
S554+ | 5 | 3.075 | 39 | 7.0 | 41,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C.H.T. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | |
SS554 | 1 | 3.075 | 39 | 6.8 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | A1, K1 |
SS554+ | 1 | 3.075 | 39 | 6.8 | 41,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C.H.T. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | A1, K1 |
SR131 | 1 | 3.075 | 39 | 7.4 | 42,000 | 4,375 | 1 1/4 | 1 13/16 | 1 5/8 | 5/8 | A | ALY.H.T. | 3/8 | 1 1/2 | M.C.H.T. | 29/32 | 1 | L.C.C.H. | 1 1/4 | 1 1/8 | — | A | L.C.C.H. | |
S2219 | 5 | 3.675 | 33 | 4.7 | 44,000 | 3,450 | 1 1/4 | 1 15/32 | 1 11/32 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C.H.T. | 13/16 | 3 | L.C.C.H. | 1 1/8 | 1 1/8 | — | A | ALY.H.T. | |
S1112 | 3 | 3.690 | 33 | 6.3 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 1 3/4 | 1 3/16 | — | A | L.C.C.H. | A42, A2, K2 |
S1120 | 3 | 4.000 | 30 | 3.4 | 14,000 | 2,100 | 1 | 1 7/32 | 1 1/16 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 1/2 | 7/8 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2, M3 |
S1121 | 3 | 4.000 | 30 | 3.5 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 1/2 | 1 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2, M3 |
S1122 | 3 | 4.000 | 30 | 4.1 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 3/4 | 1 | — | A | L.C.C.H. | A1, A2, K1, K2 |
S1195 | 3 | 4.000 | 30 | 4.8 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 2 | 1 | — | A | L.C.C.H. | A1, A2, A11, K1, K2, M3 |
S4019 | 3 | 4.000 | 30 | 4.1 | 19,000 | 2,450 | 7/8 | 1 9/32 | 1 1/8 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/4 | M.C. | 3/4 | 3 | L.C.C.H. | 1 1/2 | 3/4 | — | A | L.C.C.H. | A1, A2, K1, K2 |
S1478 | 3 | 4.000 | 30 | 7.0 | 27,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/2 | M.C.H.T. | 7/8 | 2 | L.C.C.H. | 2 1/4 | 15/16 | — | A | L.C.C.H. | A2, K2 |
S4002 | 3 | 4.000 | 30 | 4.0 | 19,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/4 | M.C. | 3/4 | 3 | L.C.C.H. | 1 1/2 | 15/16 | — | A | L.C.C.H. | A1, A2, A11, A22, A42, G29, K1, K2 |
S1119 | 3 | 4.000 | 30 | 6.7 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | A1, K1 |
S2436+ | 5 | 4.000 | 30 | 4.8 | 44,000 | 3,450 | 1 1/4 | 1 15/32 | 1 11/32 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C.H.T. | 13/16 | 3 | L.C.C.H. | 1 1/8 | 1 1/8 | — | A | ALY.H.T. | |
S2400+ | 5 | 4.000 | 30 | 4.8 | 44,000 | 3,570 | 1 5/16 | 1 3/8 | 1 1/2 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C.H.T. | 13/16 | 3 | L.C.C.H. | 1 1/8 | 1 3/16 | — | A | L.C.C.H. | |
S2188 | 3 | 4.000 | 30 | 7.1 | 28,000 | 4,240 | 1 5/16 | 1 23/32 | 1 17/32 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 3/4 | 1 3/16 | — | A | L.C.C.H. | A1, A2, K1, K2 |
SS555 | 1 | 4.000 | 30 | 6.0 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | A2, K2 |
S2450+ | 5 | 4.000 | 30 | 6.0 | 52,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.I.H. | 5/16 | 1 1/2 | M.C.H.T. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | ALY.C.H. | |
S531 | 3 | 4.000 | 30 | 9.5 | 32,000 | 4,375 | 1 1/4 | 1 13/16 | 1 5/8 | 5/8 | A | ALY.H.T. | 3/8 | 1 1/2 | M.C. | 29/32 | 1 | L.C.C.H. | 2 1/4 | 1 1/8 | — | A | L.C.C.H. | A1, A2, A42, K1, K2 |
S3945 | 1 | 4.000 | 30 | 6.6 | 40,000 | 5,740 | 2 | 2 3/32 | 1 7/8 | 5/8 | B | ALY.I.H. | 5/16 | 1 1/2 | M.C.H.T. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 7/8 | — | A | ALY.C.H. | K23, M2 |
S4830 | 1 | 4.000 | 30 | 7.7 | 40,000 | 6,290 | 2 1/8 | 2 3/16 | 2 1/16 | 5/8 | A | ALY.I.H. | 3/8 | 1 1/2 | M.C.H.T. | 7/8 | 2 | ALY.C.H. | 1 1/4 | 2 | — | A | L.C.C.H. | K23 |
S3433 | 1 | 4.000 | 30 | 8.7 | 40,000 | 6,290 | 2 1/8 | 2 3/16 | 2 1/16 | 5/8 | A | ALY.H.T. | 3/8 | 1 1/2 | M.C.H.T. | 1 | 2 | ALY.C.H. | 1 1/2 | 2 | — | A | L.C.C.H. | K25 |
S3433SPC | 3 | 4.000 | 30 | 9.2 | 40,000 | 6,290 | 2 1/8 | 2 3/16 | 2 1/16 | 5/8 | A | ALY.H.T. | 3/8 | 1 1/2 | M.C.H.T. | 1 | 2 | ALY.C.H. | 1 5/8 | 2 | — | A | L.C.C.H. | K25 |
S3952 | 1 | 4.000 | 30 | 8.2 | 40,000 | 7,220 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 1 3/4 | M.C.H.T. | 1 1/8 | 3 | ALY.C.H. | 1 7/16 | 1 7/8 | — | A | ALY.C.H. | K22 |
S1140 | 3 | 4.000 | 30 | 12.1 | 38,000 | 4,800 | 1 3/8 | 1 21/32 | 1 9/16 | 11/16 | B | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 3 | L.C.C.H. | 2 1/2 | 1 3/16 | — | A | L.C.C.H. | A1, K1, M3 |
S1113 | 3 | 4.040 | 30 | 7.9 | 28,000 | 4,240 | 1 5/16 | 1 23/32 | 1 17/32 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | A2, A11, A22, K2 |
S2268 | 1 | 4.083 | 29 | 11.9 | 62,600 | 7,220 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 1/4 | M.C.H.T. | 1 1/8 | 3 | ALY.C.H. | 1 5/8 | 1 7/8 | — | A | M.C.H.T. | K22, M2 |
S2268SPC | 1 | 4.083 | 29 | 17.0 | 62,600 | 7,220 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 1/4 | M.C.H.T. | 1 1/8 | 3 | ALY.C.H. | 2 | 1 7/8 | — | A | L.C.C.H. | K22 |
S2268HD | 1 | 4.083 | 29 | 17.0 | 100,000 | 8,400 | 2 | 2 9/32 | 2 1/32 | 7/8 | A | ALY.I.H. | 3/8 | 2 1/2 | M.C.H.T. | 3 | ALY.C.H. | 2 | 1 7/8 | — | A | ALY.C.H. | K22 | |
S3945SPC | 1 | 4.090 | 29 1/3 | 7.0 | 40,000 | 5,740 | 2 | 2 3/32 | 1 7/8 | 5/8 | B | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 3/8 | 1 7/8 | — | A | ALY.C.H. | M2 |
S3968 | 1 | 4.610 | 26 | 8.4 | 40,000 | 5,740 | 2 | 2 3/32 | 1 27/32 | 5/8 | B | ALY.I.H. | 5/16 | 2 | M.C.H.T. | 7/8 | 3 | ALY.C.H. | 1 3/8 | 1 7/8 | — | A | M.C.H.T. | K23 |
S9111A | 1 | 4.760 | 25 | 11.2 | 50,000 | 8,850 | 2 5/8 | 2 19/32 | 2 11/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C.H.T. | 1 7/16 | 4 | L.C.C.H. | 1 7/8 | 2 1/2 | — | A | L.C.C.H. | K25 |
S1596 | 5 | 5.000 | 24 | 5.7 | 28,000 | 4,240 | 1 5/16 | 1 23/32 | 1 17/32 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 1/2 | 1 3/16 | — | A | L.C.C.H. | A42 |
S2035 | 1 | 5.188 | 23 | 14.4 | 124,000 | 9,350 | 2 5/16 | 2 3/8 | 2 7/32 | 7/8 | B | ALY.I.H. | 3/8 | 2 1/2 | M.C.H.T. | 1 1/4 | 3 | ALY.C.H. | 2 | 2 3/16 | — | A | M.C.H.T. | K22 |
S1199 | 3 | 6.000 | 20 | 3.5 | 14,000 | 2,100 | 1 | 1 7/32 | 1 1/16 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 2 | 7/8 | — | A | L.C.C.H. | A11 |
S1197 | 3 | 6.000 | 20 | 3.6 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 2 | 1 | — | A | L.C.C.H. | A1, A2, A42, K1, K2 |
S1198 | 3 | 6.000 | 20 | 2.8 | 14,000 | 2,300 | 1 1/8 | 1 5/32 | 1 1/8 | 7/16 | B | ALY.H.T. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 1 1/2 | 1 | — | A | L.C.C.H. | |
S1196 | 3 | 6.000 | 20 | 5.3 | 21,700 | 2,490 | 1 1/8 | 1 9/32 | 1 1/4 | 7/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 5/8 | 3 | L.C.C.H. | 2 | 1 | — | A | L.C.C.H. | A1, A2, K1, K2 |
S4003 | 3 | 6.000 | 20 | 3.6 | 19,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/4 | M.C. | 3/4 | 3 | L.C.C.H. | 1 1/2 | 15/16 | — | A | L.C.C.H. | |
S1604 | 2 | 6.000 | 20 | 7.2 | 27,000 | 2,730 | 1 1/16 | 1 11/32 | 1 7/32 | 1/2 | A | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 3/4 | 3 | L.C.C.H. | 3 | 15/16 | — | A | L.C.C.H. | A42 |
S1116 | 3 | 6.000 | 20 | 5.6 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | A1, A2, A42, K1, K2 |
S2190 | 3 | 6.000 | 20 | 6.6 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 2 1/2 | 1 3/16 | — | A | L.C.C.H. | A2, A11, A42, K2 |
S2190F | 4 | 6.000 | 20 | 7.0 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 2 1/2 | 7/8 | 1/4 | E | WEBLOY | A2, A11, K2 |
S1114 | 3 | 6.000 | 20 | 6.3 | 28,000 | 4,240 | 1 5/16 | 1 23/32 | 1 17/32 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | A2, A11, A42, K2 |
S1670 | 3 | 6.000 | 20 | 6.9 | 28,000 | 4,240 | 1 5/16 | 1 23/32 | 1 17/32 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 2 1/4 | 1 3/16 | — | A | L.C.C.H. | |
S2180 | 3 | 6.000 | 20 | 8.3 | 33,600 | 4,375 | 1 1/4 | 1 13/16 | 1 5/8 | 5/8 | A | ALY.H.T. | 3/8 | 1 3/4 | M.C. | 29/32 | 1 | L.C.C.H. | 2 1/4 | 1 1/8 | — | A | L.C.C.H. | A2, A42, K2 |
S951 | 3 | 6.000 | 20 | 11.9 | 40,000 | 4,375 | 1 1/4 | 1 13/16 | 1 5/8 | 5/8 | A | ALY.H.T. | 3/8 | 2 | M.C. | 29/32 | 1 | L.C.C.H. | 3 | 1 1/8 | — | A | L.C.C.H. | A1, A2, A11, K1, K2 |
S1602 | 2 | 6.000 | 20 | 8.4 | 32,000 | 4,375 | 1 1/4 | 1 13/16 | 1 5/8 | 5/8 | A | ALY.H.T. | 3/8 | 1 1/2 | M.C. | 29/32 | 1 | L.C.C.H. | 2 1/2 | 1 1/8 | — | A | L.C.C.H. | |
SS556 | 3 | 6.000 | 20 | 6.7 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 2 | 1 3/8 | — | A | L.C.C.H. | |
SS556F | 4 | 6.000 | 20 | 10.4 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 3 | 1 1/8 | 7/16 | E | WEBLOY | |
S1036 | 1 | 6.000 | 20 | 6.7 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 1 1/4 | 1 3/8 | — | A | L.C.C.H. | |
RS658P | 3 | 6.000 | 20 | 10.0 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 1 9/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/2 | — | D | WEBLOY | A2, A11, G16, G29, K2 |
RS658F | 4 | 6.000 | 20 | 10.0 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 1 9/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/8 | 3/8 | E | WEBLOY | A2, A11, G16, G29, K2 |
S945 | 3 | 6.000 | 20 | 10.0 | 28,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 1 1/2 | M.C. | 7/8 | 3 | ALY.C.H. | 3 | 1 3/8 | — | A | L.C.C.H. | |
RS611P | 3 | 6.000 | 20 | 9.8 | 42,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/4 | — | B | WEBLOY | A2, A11, G16, K2 |
RS611F | 4 | 6.000 | 20 | 10.8 | 42,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/8 | 7/16 | E | WEBLOY | A2, A11, G16, K2 |
S1141 | 3 | 6.000 | 20 | 9.5 | 38,000 | 4,800 | 1 3/8 | 1 21/32 | 1 9/16 | 11/16 | B | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 3 | L.C.C.H. | 2 1/2 | 1 3/16 | — | A | L.C.C.H. | |
CC5 | 3 | 6.000 | 20 | 10.5 | 50,000 | 4,800 | 1 3/8 | 1 21/32 | 1 9/16 | 11/16 | B | ALY.H.T. | 5/16 | 2 1/2 | M.C. | 1 | 3 | L.C.C.H. | 2 1/2 | 1 3/16 | — | A | L.C.C.H. | M3 |
S2847 | 1 | 6.000 | 20 | 6.7 | 50,000 | 6,620 | 2 1/8 | 2 5/32 | 1 29/32 | 11/16 | B | ALY.I.H. | 5/16 | 1 3/4 | M.C.H.T. | 1 | 3 | L.C.C.H. | 1 3/8 | 2 | — | A | L.C.C.H. | K25 |
SS6 | 3 | 6.000 | 20 | 11.0 | 50,000 | 5,575 | 1 3/8 | 1 31/32 | 1 23/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 2 1/2 | 1 1/4 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2 |
SS6SPC | 3 | 6.000 | 20 | 12.6 | 50,000 | 5,575 | 1 3/8 | 1 31/32 | 1 23/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 3 | 1 1/4 | — | A | L.C.C.H. | A1, A2, A11, A42, K1, K2 |
RS622P | 3 | 6.000 | 20 | 15.0 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | |
RS622F | 4 | 6.000 | 20 | 16.0 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | |
S3600+ | 5 | 6.000 | 20 | 10.5 | 77,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 1/4 | M.C.H.T | 1 1/8 | 3 | ALY.C.H. | 1 5/8 | 7/8 | — | A | L.C.C.H. | |
SS96 | 3 | 6.000 | 20 | 12.2 | 50,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 2 3/4 | 1 3/8 | — | A | L.C.C.H. | A1, A2, A42, K1, K2 |
SS944+ | 1 | 6.000 | 20 | 9.6 | 73,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C.H.T | 1 1/8 | 3 | ALY.C.H. | 1 7/8 | 1 3/8 | — | A | L.C.C.H. | A1, K1 |
SS1776 | 3 | 6.000 | 20 | 15.2 | 50,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 3 1/2 | 1 5/16 | — | B | L.C.C.H. | |
SS9061 | 3 | 6.000 | 20 | 13.0 | 85,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 1/4 | M.C. | 1 1/8 | 3 | ALY.C.H. | 2 3/4 | 1 1/8 | — | A | L.C.C.H. | A42 |
S1131 | 3 | 6.000 | 20 | 13.5 | 50,000 | 6,230 | 1 5/8 | 2 3/32 | 1 27/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 3 | 1 7/16 | — | A | L.C.C.H. | A2, A42, K2 |
S2130 | 2 | 6.000 | 20 | 11.4 | 50,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 3 | ALY.C.H. | 2 1/2 | 1 3/8 | — | A | L.C.C.H. | A42 |
S1920 | 3 | 6.000 | 20 | 11.4 | 73,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C.H.T | 1 1/8 | 3 | ALY.C.H. | 2 1/2 | 1 3/8 | — | A | L.C.C.H. | |
SS996 | 3 | 6.000 | 20 | 12.2 | 73,000 | 5,900 | 1 1/2 | 2 1/32 | 1 25/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C.H.T | 1 1/8 | 3 | ALY.C.H. | 2 3/4 | 1 3/8 | — | A | L.C.C.H. | A1, A2, A42, K1, K2 |
S3940 | 1 | 6.000 | 20 | 9.7 | 62,600 | 7,220 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 1/4 | M.C.H.T. | 1 1/8 | 3 | ALY.C.H. | 1 5/8 | 1 7/8 | — | A | M.C.H.T. | K25 |
SS3888 | 1 | 6.000 | 20 | 17.5 | 73,200 | 7,875 | 2 1/4 | 2 11/32 | 2 5/32 | 3/4 | A | ALY.I.H. | 3/8 | 3 | M.C.H.T. | 1 1/4 | 3 | L.C.C.H. | 2 1/2 | 2 1/8 | — | A | L.C.C.H. | |
S9833A | 3 | 6.000 | 20 | 13.9 | 50,000 | 8,850 | 2 5/8 | 2 19/32 | 2 11/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C.H.T. | 1 7/16 | 4 | L.C.C.H. | 2 1/2 | 2 1/2 | — | A | L.C.C.H. | K25 |
S6910 | 3 | 6.000 | 20 | 18.3 | 82,250 | 9,200 | 2 1/4 | 2 15/32 | 2 5/32 | 7/8 | B | ALY.H.T. | 3/8 | 2 1/2 | M.C.H.T. | 1 1/4 | 2 | ALY.C.H. | 3 | 2 1/16 | — | B | L.C.C.H. | M3 |
ZA2184+ | 2 | 6.000 | 20 | 12.4 | 85,000 | 6,500 | 1 3/8 | 2 3/32 | 1 3/4 | 7/8 | B | ALY.I.H. | 3/8 | 2 | M.C.H.T. | 1 1/4 | 2 | ALY.C.H. | 3 | 1 1/8 | — | A | L.C.C.H. | A42 |
ZA2178A | 3 | 6.000 | 20 | 13.4 | 85,000 | 7,080 | 1 9/16 | 2 1/16 | 1 13/16 | 7/8 | B | ALY.I.H. | 3/8 | 2 1/4 | M.C.H.T. | 1 1/4 | 3 | ALY.C.H. | 2 3/4 | 1 3/16 | — | B | L.C.C.H. | A2, K2 |
ZA2198 | 3 | 6.000 | 20 | 15.6 | 100,000 | 7,850 | 1 9/16 | 2 5/16 | 2 3/32 | 7/8 | B | ALY.I.H. | 1/2 | 2 1/4 | M.C.H.T. | 1 1/4 | 3 | L.C.C.H. | 2 3/4 | 1 1/4 | — | B | L.C.C.H. | A2, K2 |
S9063 | 3 | 6.000 | 20 | 13.6 | 140,000 | 7,380 | 1 1/2 | 2 1/32 | 1 25/32 | 15/16 | B | ALY.I.H. | 3/8 | 2 1/2 | ALY.H.T. | 1 1/4 | 3 | ALY.C.H. | 3 | 1 3/16 | — | B | L.C.C.H. | A2, K2 |
ZA9184 | 2 | 6.000 | 20 | 17.2 | 125,000 | 8,400 | 1 9/16 | 2 1/4 | 2 1/16 | 15/16 | B | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 1/4 | 3 | ALY.C.H. | 3 | 1 1/4 | — | B | L.C.C.H. | A42 |
S645 | 3 | 6.000 | 20 | 23.5 | 122,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | B | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 1/2 | 2 | L.C.C.H. | 3 | 2 7/16 | — | A | L.C.C.H. | |
S9856B | 3 | 6.000 | 20 | 22.2 | 100,000 | 14,000 | 3 | 3 | 2 27/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 3/4 | 4 | ALY.C.H. | 2 13/16 | 2 3/4 | — | A | L.C.C.H. | K25, M2, M2-9 |
SS888 | 1 | 8.000 | 15 | 1.9 | 14,000 | 2,100 | 1 | 1 7/16 | 1 1/16 | 7/16 | B | ALY.I.H. | 3/16 | 1 1/8 | M.C. | 5/8 | 3 | L.C.C.H. | 7/8 | 7/8 | — | A | L.C.C.H. | Jig |
3939 | 1 | 8.000 | 15 | 1.6 | 24,000 | 2,500 | 1 1/16 | 1 1/8 | 1 | 7/16 | F | ALY.C.H. | 5/32 | 1 1/8 | M.C.H.T. | 19/32 | 3 | L.C.C.H. | 29/32 | 1 | — | A | L.C.C.H. | Jig |
RS822P | 3 | 8.000 | 15 | 12.8 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | |
RS822F | 4 | 8.000 | 15 | 13.4 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | |
RS832P | 3 | 8.000 | 15 | 14.4 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 3/4 | — | D | WEBLOY | |
RS832F | 4 | 8.000 | 15 | 15.4 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 5/16 | 7/16 | G | WEBLOY | |
RS833P | 3 | 8.000 | 15 | 16.8 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 2 | — | D | WEBLOY | |
RS833F | 4 | 8.000 | 15 | 17.8 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 1 9/16 | 17/32 | G | WEBLOY | |
ZA2800 | 3 | 8.000 | 15 | 26.0 | 125,000 | 9,840 | 1 13/16 | 2 7/16 | 2 3/16 | 1 | B | ALY.I.H. | 1/2 | 2 3/4 | M.C.H.T. | 1 1/2 | 3 | L.C.C.H. | 3 1/2 | 1 7/16 | — | A | L.C.C.H. | A2, A22, A42, K2, K22 |
S1117 | 3 | 9.000 | 13 1/3 | 4.4 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C.H.T. | 13/16 | 3 | L.C.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | |
RS958P | 3 | 9.000 | 13 1/3 | 7.8 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 1 9/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/2 | — | D | WEBLOY | A2, G16, K2 |
RS958F | 4 | 9.000 | 13 1/3 | 7.8 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 19/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | L.C.C.H. | 3 | 1 1/8 | 3/8 | E | WEBLOY | A2, G16, K2 |
RS911P | 3 | 9.000 | 13 1/3 | 7.9 | 38,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | L.C.C.H. | 3 | 1 1/4 | — | B | WEBLOY | A2, G16, K2 |
RS911F | 4 | 9.000 | 13 1/3 | 8.6 | 38,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | L.C.C.H. | 3 | 1 1/8 | 7/16 | E | WEBLOY | A2, G16, K2 |
809 | 4 | 9.000 | 13 1/3 | 13.0 | 33,000 | 6,500 | 2 | 1 15/16 | 1 25/32 | 3/4 | A | ALY.I.H. | 1/4 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | |
RS928 | 5 | 9.000 | 13 1/3 | 8.5 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 1 7/8 | 1 7/8 | — | A | L.C.C.H. | M14 |
RS922P | 3 | 9.000 | 13 1/3 | 11.7 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | L.C.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | A2, G16, K2 |
RS922F | 4 | 9.000 | 13 1/3 | 12.3 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | L.C.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | A2, G16, K2 |
RS932P | 3 | 9.000 | 13 1/3 | 13.3 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | L.C.C.H. | 4 | 1 3/4 | — | D | WEBLOY | A2, G16, K2 |
RS932F | 4 | 9.000 | 13 1/3 | 14.3 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | L.C.C.H. | 4 | 1 5/16 | 7/16 | G | WEBLOY | A2, G16, K2 |
S2342 | 5 | 9.000 | 13 1/3 | 9.2 | 65,000 | 9,000 | 1 15/16 | 2 1/2 | 2 1/4 | 7/8 | A | ALY.I.H. | 1/2 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 1 3/4 | 1 13/16 | — | A | L.C.C.H. | M14 |
RS933P | 3 | 9.000 | 13 1/3 | 15.6 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | L.C.C.H. | 4 | 2 | — | D | WEBLOY | A2, G5, G16, K2 |
RS933F | 4 | 9.000 | 13 1/3 | 16.5 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | L.C.C.H. | 4 | 1 9/16 | 17/32 | G | WEBLOY | A2, G5, G16, K2 |
RS938 | 5 | 9.000 | 13 1/3 | 10.4 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 1 7/8 | 2 1/8 | — | A | L.C.C.H. | M14 |
RS933½P | 3 | 9.000 | 13 1/3 | 14.1 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/4 | 2 | L.C.C.H. | 3 | 2 1/16 | — | B | L.C.C.H. | G5, G16 |
S4009 | 3 | 9.000 | 13 1/3 | 14.7 | 81,200 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.I.H. | 3/8 | 2 1/2 | M.C.H.T. | 1 1/4 | 2 | ALY.C.H. | 3 | 2 1/16 | — | A | L.C.C.H. | G5 |
RS944P | 3 | 9.000 | 13 1/3 | 24.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 2 | — | D | WEBLOY | |
RS944F | 4 | 9.000 | 13 1/3 | 25.9 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 1 3/4 | 19/32 | G | WEBLOY | |
RS944½P | 3 | 9.000 | 13 1/3 | 18.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 3 | 2 7/16 | — | B | L.C.C.H. | |
RS946 | 5 | 9.000 | 13 1/3 | 15.0 | 85,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C. | 1 1/2 | 2 | L.C.C.H. | 2 1/4 | 2 7/16 | — | A | L.C.C.H. | M14 |
S4004 | 3 | 9.000 | 13 1/3 | 18.5 | 85,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C. | 1 1/2 | 2 | L.C.C.H. | 3 | 2 7/16 | — | B | L.C.C.H. | G5 |
RS955P | 3 | 9.000 | 13 1/3 | 38.8 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 21/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | ALY.C.H. | 6 | 2 1/2 | — | D | WEBLOY | |
RS955F | 4 | 9.000 | 13 1/3 | 40.1 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 21/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | ALY.C.H. | 6 | 1 9/16 | 15/32 | G | WEBLOY | |
S4065A | 3 | 9.000 | 13 1/3 | 38.0 | 150,000 | 18,900 | 3 1/16 | 3 7/16 | 3 1/8 | 1 1/4 | A | ALY.I.H. | 5/8 | 3 1/2 | M.C. | 2 | 4 | ALY.C.H. | 4 1/4 | 2 15/16 | — | A | L.C.C.H. | G5 |
S1209A | 3 | 9.000 | 13 1/3 | 40.0 | 183,000 | 25,000 | 3 1/2 | 3 21/32 | 3 11/32 | 1 1/2 | B | ALY.I.H. | 5/8 | 3 1/2 | M.C.H.T. | 2 3/8 | 4 | ALY.C.H. | 4 1/4 | 3 3/8 | — | A | L.C.C.H. | G5 |
S1118 | 3 | 12.000 | 10 | 5.1 | 21,000 | 3,500 | 1 5/16 | 1 1/2 | 1 3/8 | 9/16 | B | ALY.H.T. | 1/4 | 1 1/2 | M.C. | 13/16 | 3 | L.C.C.H. | 2 | 1 3/16 | — | A | L.C.C.H. | |
RS1258P | 3 | 12.000 | 10 | 6.8 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 1 9/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/2 | — | D | WEBLOY | |
RS1258F | 4 | 12.000 | 10 | 6.8 | 30,000 | 4,650 | 1 5/8 | 1 27/32 | 1 9/16 | 5/8 | A | ALY.H.T. | 1/4 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/8 | 3/8 | E | WEBLOY | |
RS1211P | 3 | 12.000 | 10 | 7.0 | 38,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/4 | — | B | WEBLOY | G16 |
RS1211F | 4 | 12.000 | 10 | 7.9 | 38,000 | 4,650 | 1 1/2 | 1 25/32 | 1 5/8 | 5/8 | A | ALY.H.T. | 5/16 | 2 | M.C. | 1 | 2 | ALY.C.H. | 3 | 1 1/8 | 7/16 | E | WEBLOY | G16 |
RS1221P | 3 | 12.000 | 10 | 9.5 | 50,000 | 6,230 | 1 5/8 | 2 3/32 | 1 27/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/4 | 1 1/2 | — | D | WEBLOY | G16 |
RS1221½P | 3 | 12.000 | 10 | 11.0 | 50,000 | 6,230 | 1 5/8 | 2 3/32 | 1 27/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/4 | 1 1/2 | — | D | L.C.C.H. | G16 |
RS1222P | 3 | 12.000 | 10 | 10.0 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | A2, G16, G16A, K2, K3 |
RS1222F | 4 | 12.000 | 10 | 10.5 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | A2, G16, G16A, K2, K3 |
RS1228 | 5 | 12.000 | 10 | 7.6 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 1 7/8 | 1 7/8 | — | A | L.C.C.H. | M14 |
RS1232P | 3 | 12.000 | 10 | 11.2 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 3/4 | — | D | WEBLOY | A2, G16, G16A, K2, K3 |
RS1232F | 4 | 12.000 | 10 | 12.0 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 5/16 | 7/16 | G | WEBLOY | A2, G16, G16A, K2, K3 |
S1270 | 4 | 12.000 | 10 | 14.2 | 46,000 | 7,665 | 2 1/4 | 2 11/32 | 2 1/32 | 7/8 | A | ALY.H.T. | 5/16 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 1 9/16 | 17/32 | G | WEBLOY | |
RS1233P | 3 | 12.000 | 10 | 13.3 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 2 | — | D | WEBLOY | A2, G16, G16A, K2, K3 |
RS1233F | 4 | 12.000 | 10 | 14.0 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 1 9/16 | 17/32 | G | WEBLOY | A2, G16, G16A, K2, K3 |
RS1238 | 5 | 12.000 | 10 | 9.4 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 1 7/8 | 2 1/8 | — | A | L.C.C.H. | M14 |
RS1233½P | 3 | 12.000 | 10 | 12.2 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 3 | 2 1/16 | — | B | L.C.C.H. | G16, G16A |
RS1244P | 3 | 12.000 | 10 | 20.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 21/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 2 | — | D | WEBLOY | A2, G16, G16A, K2, K3 |
RS1244F | 4 | 12.000 | 10 | 21.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 1 3/4 | 19/32 | G | WEBLOY | A2, G16, G16A, K2, K3 |
RS1244½P | 3 | 12.000 | 10 | 16.0 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 3 | 2 1/2 | — | B | L.C.C.H. | G16, G16A |
RS1246 | 5 | 12.000 | 10 | 13.3 | 125,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 1/2 | 2 | L.C.C.H. | 2 1/4 | 2 7/16 | — | A | L.C.C.H. | M14 |
S1245 | 3 | 12.000 | 10 | 16.0 | 125,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 1/2 | 2 | L.C.C.H. | 3 | 2 7/16 | — | B | L.C.C.H. | G5, G16A |
1706 | 5 | 12.000 | 10 | 13.7 | 120,000 | 14,000 | 3 | 3 | 2 27/32 | 1 | F | ALY.I.H. | 1/2 | 2 1/2 | M.C.H.T. | 1 3/4 | 4 | ALY.C.H. | 2 1/4 | 2 7/8 | — | A | M.C.H.T. | M14 |
RS1255P | 3 | 12.000 | 10 | 32.3 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | ALY.C.H. | 6 | 2 1/2 | — | D | WEBLOY | |
RS1255F | 4 | 12.000 | 10 | 33.3 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | ALY.C.H. | 6 | 1 9/16 | 15/32 | G | WEBLOY | |
S2614 | 5 | 12.000 | 10 | 24.0 | 162,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.I.H. | 5/8 | 3 1/2 | M.C.H.T. | 1 3/4 | 2 | ALY.C.H. | 2 1/2 | 2 5/8 | — | A | L.C.C.H. | M14 |
S2648 | 5 | 12.000 | 10 | 33.0 | 200,000 | 29,600 | 4 | 3 29/32 | 3 19/32 | 1 5/8 | F | ALY.I.H. | 5/8 | 4 | M.C.H.T. | 2 1/2 | 3 | ALY.C.H. | 3 1/2 | 3 7/8 | — | A | ALY.H.T. | M14 |
RS1422P | 3 | 14.000 | 8 1/2 | 9.3 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | |
RS1422F | 4 | 14.000 | 8 1/2 | 9.7 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.I.H. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | |
RS1822P | 3 | 18.000 | 6 2/3 | 8.3 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 3/4 | — | D | WEBLOY | G16, G16A, K3 |
RS1822F | 4 | 18.000 | 6 2/3 | 8.7 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 3 1/2 | 1 5/16 | 7/16 | G | WEBLOY | G16, G16A, K3 |
RS1832P | 3 | 18.000 | 6 2/3 | 9.1 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 3/4 | — | D | WEBLOY | G16, G16A, K3 |
RS1832F | 4 | 18.000 | 6 2/3 | 9.7 | 50,000 | 7,200 | 2 | 2 9/32 | 2 1/32 | 3/4 | A | ALY.H.T. | 3/8 | 2 | M.C. | 1 1/8 | 2 | ALY.C.H. | 4 | 1 5/16 | 7/16 | G | WEBLOY | G16, G16A, K3 |
RS1833P | 3 | 18.000 | 6 2/3 | 11.0 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 2 | — | D | WEBLOY | G16, G16A, K3 |
RS1833F | 4 | 18.000 | 6 2/3 | 11.5 | 56,000 | 9,200 | 2 1/4 | 2 15/32 | 2 3/16 | 7/8 | A | ALY.H.T. | 3/8 | 2 1/2 | M.C. | 1 1/4 | 2 | ALY.C.H. | 4 | 1 9/16 | 17/32 | G | WEBLOY | G16, G16A, K3 |
RS1844P | 3 | 18.000 | 6 2/3 | 16.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 2 | — | D | WEBLOY | G16, G16A, K3 |
RS1844F | 4 | 18.000 | 6 2/3 | 17.2 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 1 3/4 | 19/32 | G | WEBLOY | G16, G16A, K3 |
RS1855P | 3 | 18.000 | 6 2/3 | 25.8 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | L.C.C.H. | 6 | 2 1/2 | — | D | WEBLOY | G16, K3 |
RS1855F | 4 | 18.000 | 6 2/3 | 26.5 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | L.C.C.H. | 6 | 1 9/16 | 15/32 | G | WEBLOY | G16, K3 |
RS1866F | 4 | 18.000 | 6 2/3 | 31.5 | 150,000 | 22,300 | 3 | 3 13/32 | 3 5/32 | 1 1/2 | A | ALY.H.T. | 5/8 | 3 1/2 | M.C. | 2 | 2 | L.C.C.H. | 6 | 1 7/8 | 19/32 | G | WEBLOY | G16, K3 |
RS2444P | 3 | 24.000 | 5 | 14.5 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 2 | — | D | WEBLOY | G16, K3 |
RS2444F | 4 | 24.000 | 5 | 15.0 | 90,000 | 12,700 | 2 5/8 | 2 27/32 | 2 21/32 | 1 | F | ALY.H.T. | 1/2 | 2 1/2 | M.C. | 1 3/8 | 2 | L.C.C.H. | 5 | 1 3/4 | 19/32 | G | WEBLOY | G16, K3 |
RS2455P | 3 | 24.000 | 5 | 22.6 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 31/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | L.C.C.H. | 6 | 2 1/2 | — | D | WEBLOY | G16, K3 |
RS2455F | 4 | 24.000 | 5 | 23.1 | 130,000 | 17,500 | 2 3/4 | 3 9/32 | 2 21/32 | 1 1/4 | A | ALY.H.T. | 5/8 | 3 | M.C. | 1 3/4 | 2 | L.C.C.H. | 6 | 1 9/16 | 15/32 | G | WEBLOY | G16, K3 |
RS2466F | 4 | 24.000 | 5 | 27.5 | 150,000 | 22,300 | 3 | 3 13/32 | 3 5/32 | 1 1/2 | A | ALY.H.T. | 5/8 | 3 1/2 | M.C. | 2 | 2 | L.C.C.H. | 6 | 1 7/8 | 19/32 | G | WEBLOY | G16, K3 |
Dimensions are in inches unless otherwise noted.

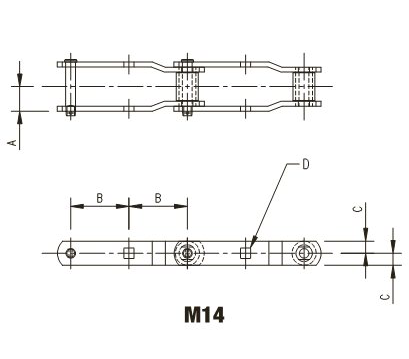

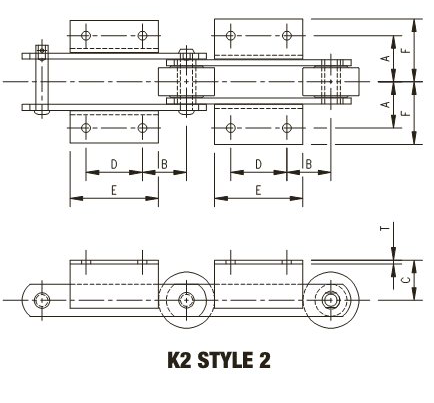

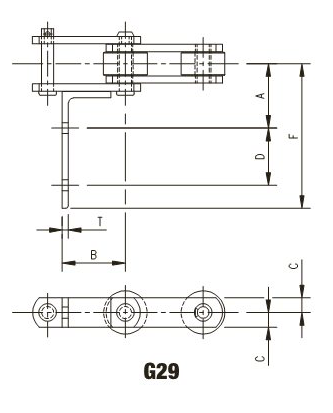

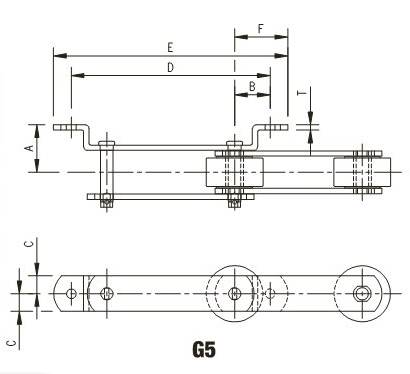

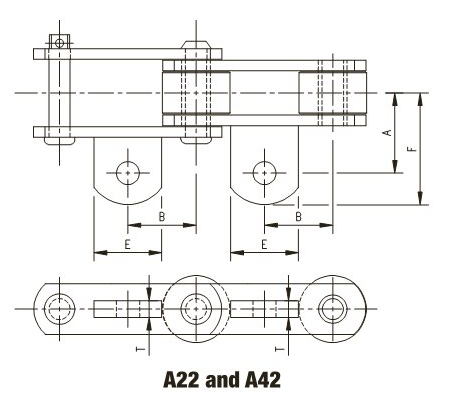

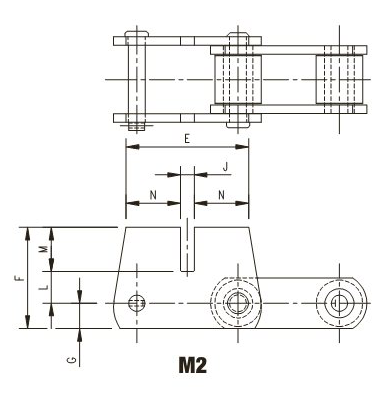

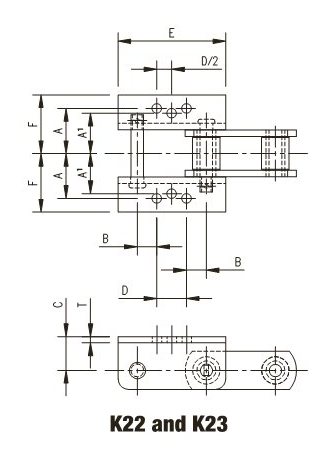

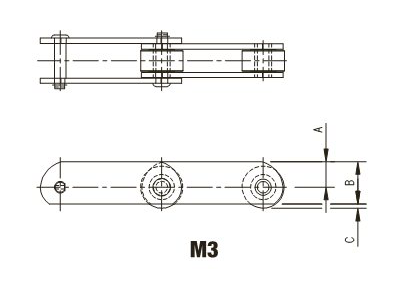

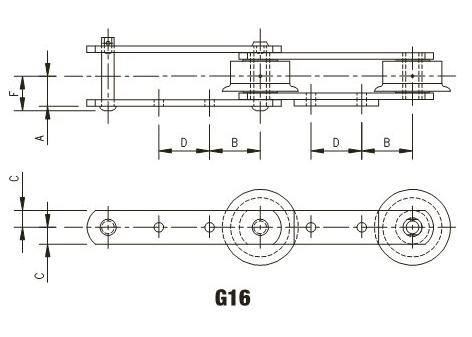

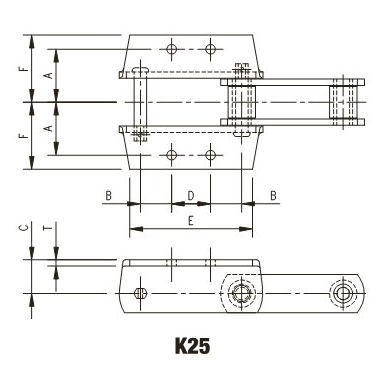

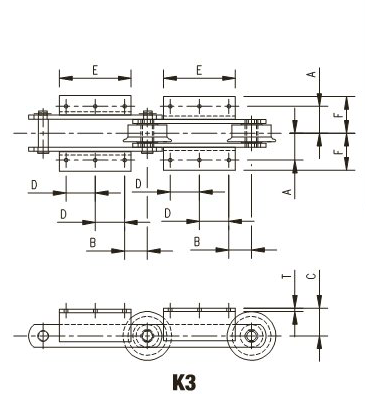

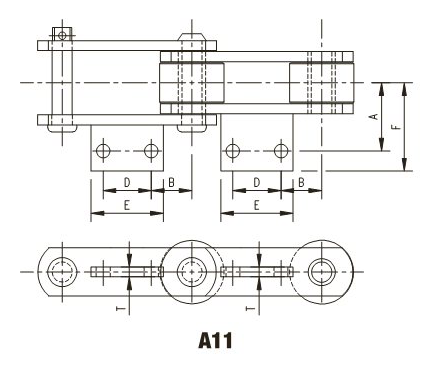

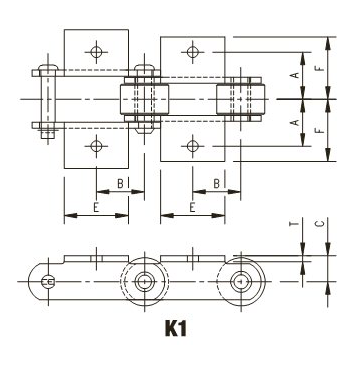

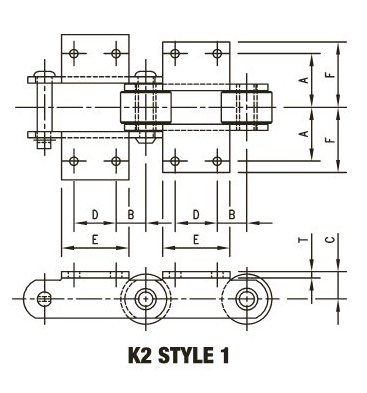

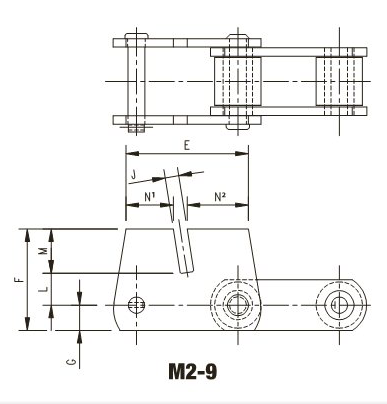

Select an attachment below:
Click to view 3D
Chain No. | A | B | D | E | F | T | Weight Per Food-Lbs. | Bolt Size | |
---|---|---|---|---|---|---|---|---|---|
S1183 | 1 5/8 | 1 | 1 | 1 3/4 | 1 15/16 | 3/16 | 4.4 | 5/16 | |
S1184 | 1 5/8 | 1 | 1 | 1 3/4 | 2 | 3/16 | 4.4 | 5/16 | |
S1120 | 2 1/8 | 1 3/8 | 1 1/4 | 2 | 2 19/32 | 3/16 | 4.1 | 5/16 | |
S1121 | 2 1/8 | 1 3/8 | 1 1/4 | 2 | 2 21/32 | 3/16 | 4.1 | 5/16 | |
S1195 | 2 1/8 | 1 3/8 | 1 1/4 | 2 | 2 21/32 | 3/16 | 5.4 | 3/8 | |
S4002 | 1 5/8 | 1 1/4 | 1 1/2 | 2 1/4 | 2 3/16 | 1/4 | 4.6 | 3/8 | |
S1113 | 2 1/8 | 1 17/64 | 1 1/2 | 2 1/4 | 2 3/4 | 5/16 | 8.8 | 3/8 | |
S2190 | 2 9/16 | 1 7/8 | 2 1/4 | 3 1/4 | 2 15/16 | 3/8 | 7.9 | 1/4 | |
S2190F | 2 9/16 | 1 7/8 | 2 1/4 | 3 1/4 | 2 15/16 | 3/8 | 7.9 | 1/4 | |
S1199 | 2 1/2 | 1 3/4 | 2 1/2 | 4 | 3 | 1/4 | 4.7 | 3/8 | |
RS658P | 2 5/16 | 2 1/8 | 1 3/4 | 3 | 3 1/8 | 1/4 | 10.8 | 3/8 | |
RS658F | 2 5/16 | 2 1/8 | 1 3/4 | 3 | 3 1/8 | 1/4 | 10.8 | 3/8 | |
S1114 | 2 3/4 | 1 9/16 | 2 7/8 | 4 | 3 11/32 | 5/16 | 8.8 | 1/2 | |
RS611P | 2 5/16 | 2 1/8 | 1 3/4 | 3 | 3 1/16 | 5/16 | 11.7 | 3/8 | |
RS611F | 2 5/16 | 2 1/8 | 1 3/4 | 3 | 3 1/16 | 5/16 | 11.7 | 3/8 | |
S951 | 2 3/16 | 1 7/8 | 2 1/4 | 3 1/4 | 2 25/32 | 1/4 | 12.6 | 3/8 | |
SS6 | 2 3/4 | 1 9/16 | 2 7/8 | 4 | 3 1/2 | 3/8 | 12.8 | 1/2 | |
SS6SPC | 2 3/4 | 1 9/16 | 2 7/8 | 4 | 3 1/2 | 3/8 | 14.4 | 1/2 |
