Turbo
Series Chains
- Overview
- Material
- Assembly
- Interchangeability
- Application
- Operation
- Specifications
Turbo Series (TS) chains are used for bucket elevators operating under highly abrasive conditions. TS chains are backed by an exclusive four-year performance guarantee in cement mill bucket elevators.
Industries
Sidebars are heat treated, medium carbon steel. Pins are alloy steel and induction hardened after thru hardening. Bushings are case hardened, alloy steel to provide maximum wear resistance and chain life.
TS chains are cottered construction for the cement industry. Chain links will be alternating.
TS chains are interchangeable with other standard makes of corresponding sizes and numbers. They are also a direct upgrade to Hardened Steel Bushed (HSB) chains of the same number.
TS chains are used for bucket elevators operating under highly abrasive conditions.
Maximum chain speed depends upon the size of the sprockets. For Conveyor Speed see Table 2, Section A, in Webster’s 400 Master Catalog.
Turbo Series Chains Product Specifications
Product Information
Dimensions are in inches unless otherwise noted.
Dimensions:
Product Chart:
Swipe to See More
| Chain No. | Average Pitch Inches | Approx. Links in 10 Feet | Average Weight Per Ft. Lbs. | Average Ultimate Strength in Lbs. | Rated Working Load in Lbs | Sidebars | Inside Sidebars | Overall Width | Pins | Bushings | Common Attachment Numbers | ||
| Thk. | Height | To Cotter End | To Head or Rivet End | Dia. | Outside Dia. | ||||||||
| T | F | W | K | J | D | H | |||||||
| TS856 | 6.000 | 20 | 16.2 | 150,000 | 14,000 | 1/2 | 2 1/2 | 3 | 3 | 2 27/32 | 1 | 1 3/4 | A2M, K2M, K3M, K24M, K35M |
| TS956 | 6.000 | 20 | 17.3 | 150,000 | 14,000 | 1/2 | 3 | 3 | 3 | 2 27/32 | 1 | 1 3/4 | A2M, K2M, K3M, K24M, K35M |
| TS857 | 6.000 | 20 | 21.0 | 150,000 | 14,000 | 1/2 | 3 1/4 | 3 | 3 5/32 | 2 27/32 | 1 | 1 3/4 | A2M, K2M, K44 |
| TS859 | 6.000 | 20 | 34.0 | 250,000 | 21,875 | 5/8 | 4 | 3 3/4 | 3 25/32 | 3 15/32 | 1 1/4 | 2 3/8 | K44 |
| TS864 | 7.000 | 17 | 32.0 | 250,000 | 21,875 | 5/8 | 4 | 3 3/4 | 3 25/32 | 3 15/32 | 1 1/4 | 2 3/8 | K443 |
Dimensions are in inches unless otherwise noted.

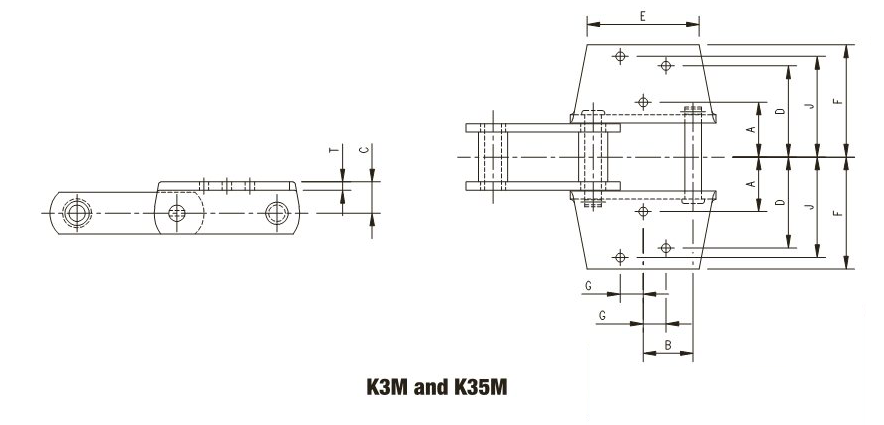

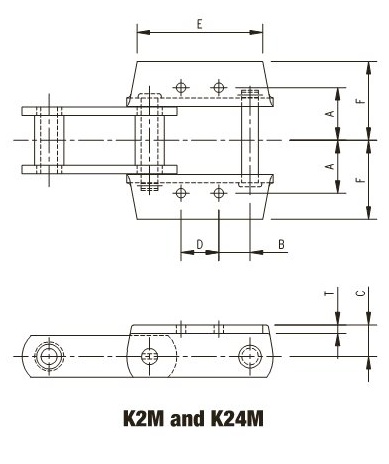

Select an attachment below:
Click to view 3D
| Chain No. | A | B | C | D | E | F Max. | T | Weight Per Foot-Lbs. | Bolt Size | 3D | 3D share |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HSB102B | 2 21/32 | 1 1/8 | 1 1/16 | 1 3/4 | 4 1/2 | 3 11/32 | 3/8 | 9.1 | 3/8 | SHabee1QT1a327cf2b7a5e23d5cc5b79cbd9 | https://a360.co/2Jq9797 |
| HSB102 1/2 | 2 21/32 | 1 9/64 | 1 1/16 | 1 3/4 | 4 3/4 | 3 3/8 | 3/8 | 9.3 | 1/2 | SHabee1QT1a327cf2b7a47b7052a45b8aee7 | https://a360.co/2H3XA0O |
| HSB110 | 2 21/32 | 2 1/8 | 1 1/16 | 1 3/4 | 6 27/32 | 3 9/32 | 3/8 | 8.6 | 3/8 | SHabee1QT1a327cf2b7aba74c6f0fb98c433 | https://a360.co/2GE3TsC |
| HSB111 | 3 1/8 | 1 7/32 | 1 1/2 | 2 5/16 | 5 1/2 | 3 29/32 | 3/8 | 13 | 1/2 | SHabee1QT1a327cf2b7a28d5e4dfe462741e | https://a360.co/2JsXsX5 |
| HSB150+ | 3 3/4 | 1 21/32 | 1 7/8 | 2 3/4 | 7 1/2 | 4 3/4 | 1/2 | 22.4 | 1/2 | SHabee1QT1a327cf2b7a41024fbceb33b7a6 | https://a360.co/2GCYsdj |
| HSB833 | 3 1/8 | 1 27/32 | 1 7/8 | 2 5/16 | 7 3/4 | 4 1/16 | 3/8 | 14.5 | 1/2 | SHabee1QT1a327cf2b7a4a46d175055a84a1 | https://a360.co/2JoFLYV |
| HSB856B | 3 5/32 | 1 7/8 | 1 7/8 | 2 1/4 | 7 1/2 | 4 3/4 | 1/2 | 22 | 1/2 | SHabee1QT1a327cf2b7a3462e4065b150c02 | https://a360.co/2IypP50 |
| TS856 | 3 5/32 | 1 7/8 | 1 7/8 | 2 1/4 | 7 1/2 | 4 3/4 | 1/2 | 22 | 1/2 | SHabee1QT1a327cf2b7a1670af2ed03fb2b8 | https://a360.co/2IB82Kt |
| HSB857A | 3 13/16 | 1 5/8 | 2 1/2 | 2 3/4 | 7 3/32 | 4 23/32 | 1/2 | 21.5 | 5/8 | SHabee1QT1a327cf2b7a9e5de562b335781d | https://a360.co/2H6h1X7 |
| TS857 | 3 13/16 | 1 5/8 | 2 1/2 | 2 3/4 | 7 3/32 | 4 23/32 | 1/2 | 21.5 | 5/8 | SHabee1QT1a327cf2b7ae39ee1a656d42a46 | https://a360.co/2qdtMV9 |
| HSB956 | 3 5/32 | 1 7/8 | 1 7/8 | 2 1/4 | 7 1/2 | 4 3/4 | 1/2 | 23.1 | 1/2 | SHabee1QT1a327cf2b7ac3a3d14d90ad9b1c | https://a360.co/2GFZvcA |
| TS956 | 3 5/32 | 1 7/8 | 1 7/8 | 2 1/4 | 7 1/2 | 4 3/4 | 1/2 | 23.1 | 1/2 | SHabee1QT1a327cf2b7a367cb2b8a67c70b4 | https://a360.co/2H0p5bI |
